Raven Screen Icons

Raven Toast Widgets

When enabled, there are a number of toast widgets that appear on Raven’s screens to alert drivers of behaviour that needs to be corrected. Below is a list of icons and what they mean.

Toast Widgets - Cabin

	Camera Obscured Monitoring for any object obstructing the cabin-camera view
	Cellphone Detected Monitoring for instances where the driver has a cellphone in hand
	Fatigue Monitoring the driver for eyes closed and yawning while driving
	Smoking Monitoring for any vehicle occupant smoking, even while stopped
	Distracted Monitoring for instances where the driver looks down or away from the road
	Eating/Drinking Monitoring for instances where the driver is eating or drinking



Toast Widgets - Road

Tailgating Monitoring for instances where the driver is following too closely

Raven Screen Status Icons

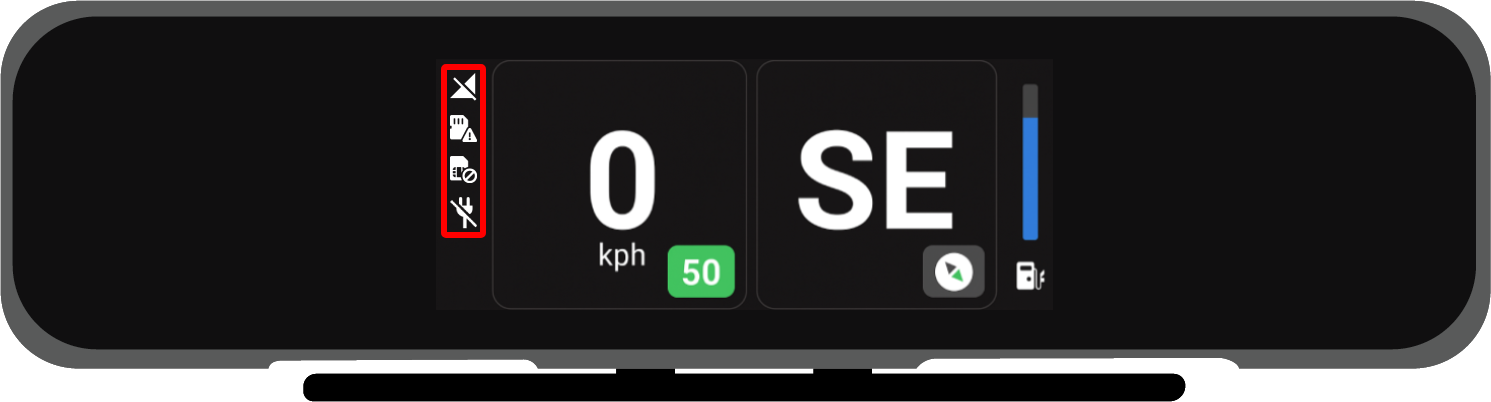

There are a number of icons that appear on Raven’s screens to indicate the current status of Raven. Below is a list of icons and what they mean.

Status Icon Name	Status Description	Icon Image
Short Recording Icon	Indicates that Raven is currently recording a short video clip	REC
Live Streaming Icon	Indicates that a user is currently live streaming from Raven's cabin camera	LIVE
SD Card Error Icon	Indicates that there's an error with the SD card currently inserted into Raven
SIM Card Error Icon	Indicates there's an error with the SIM card currently inserted into Raven
No Cellular Signal Icon	Indicates that there is no cell connectivity and Raven is unable to communicate with our cloud servers
Raven Unplugged Icon	Indicates that Raven is not getting any 12V power (ie. OBD cable not plugged in)
USB Plugged In Icon	Indicates that Raven is currently connected to a USB cable
Wifi Hotspot Active Icon	Indicates that the WiFi hotspot is enabled and data is tethered
Cabin Camera Disabled Icon	Indicates that Raven is not recording cabin-camera footage
Audio Disabled Icon	Indicates that Raven is not recording audio
Bluetooth Button Paired Icon	Indicates that the Raven is paired with a Bluetooth Button
